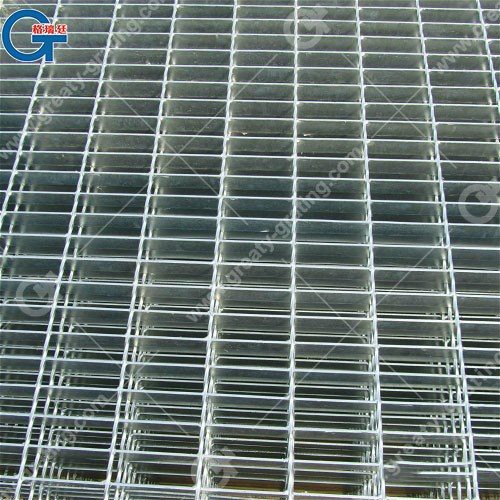

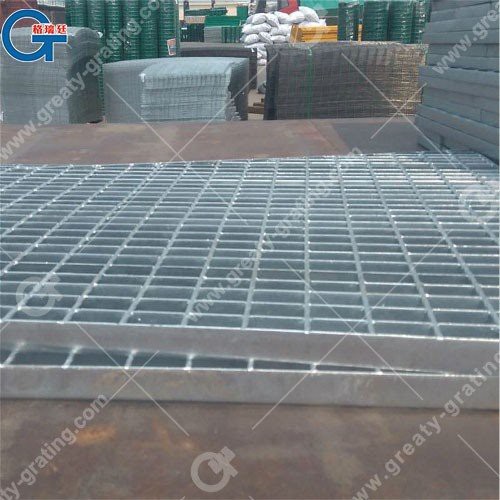

Plain bar grating, also known as plain grating, plain steel grating, smooth grating, smooth bar grating or smooth surface steel grating, is the standard type most commonly used, skid-proof to some degree. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

Product Description

Plain bar grating, also known as plain grating, plain steel grating, smooth grating, smooth bar grating or smooth surface steel grating, is the standard type most commonly used, skid-proof to some degree. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

Series 1 : Center pitch of load bars is 30mm. It is in accordance with USA standards, Australia standards and Japanese standards applicable etc. With highest density of flat bars and strength, it is suitable for different applications.

Series 2: Center pitch of load bars is 40mm. It conforms to the requirement of fixed platform, walkway, stairway and tread as regulated in British, Germany, France and Japanese standards etc. Its general applications include conveyor walkway, storage shelves, mezzanine floor, catwalk, security grilles and sun screens etc.

Series 3 : Center pitch of load bars is 60 mm. This series has been specifically developed for mining industry and used for hang ceiling. With a high cost efficiency, it is the optimal choice for hang ceiling.

Classification of Plain Bar Grating

According Different Fabrications:

* Welded plain bar grating. The twisted square cross bars is welded onto bearing bars to form a firm and integrated structure.

* Swage-locked plain bar grating. The round or square bars is placed into pre-holes on the bearing bars and then locked by high pressure.

* Press-locked plain bar grating. The flat square bars is pressed onto the bearing bars by extremely high pressure. Sometimes, there are notches on bearing bars and cross bars. And the height of bearing bar and cross bar can be different.

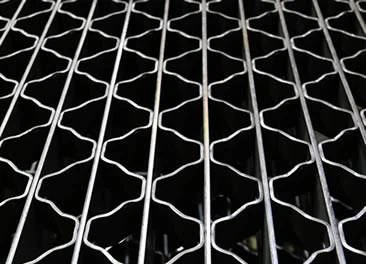

* Riveted plain bar grating. The cross bar of riveted plain steel grating is a series crimped bars, which is jointed to the bearing bar by rivets. It is ideal for pedestrian wearing high-heel shoes and roller skates and wheeled equipment safe passing through.

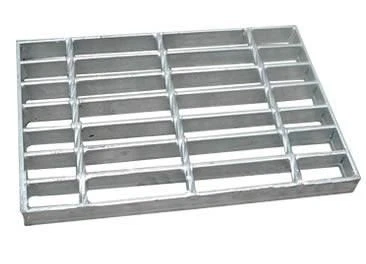

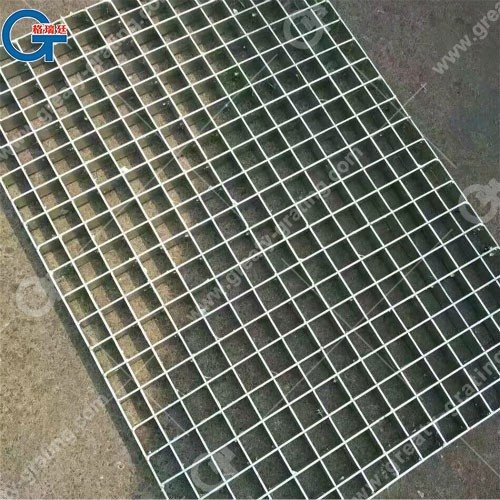

Welded plain steel grating	Swage-locked plain steel grating

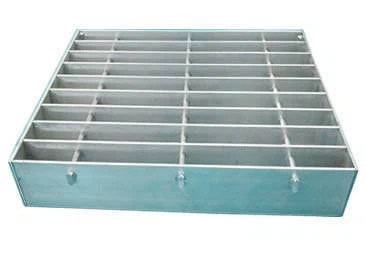

Press-locked plain steel grating	Riveted plain steel grating

According Different Materials

* Carbon steel plain steel grating. Surface treatment can be galvanized and painted to extend the service life.

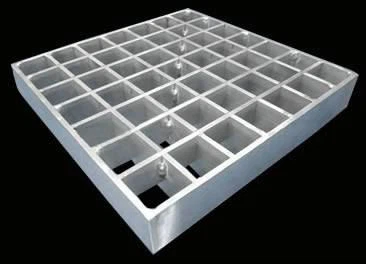

* Aluminum plain steel grating. Lightweight and economical type of steel grating.

* Stainless steel plain steel grating. Expensive but outstanding chemical stability for long service life and wide using applications.

Plain grating can be divided into different types according to different standard. You can refer to the following classification and find the perfect product for you. And if you have other special requirements, just contact us for customization.
