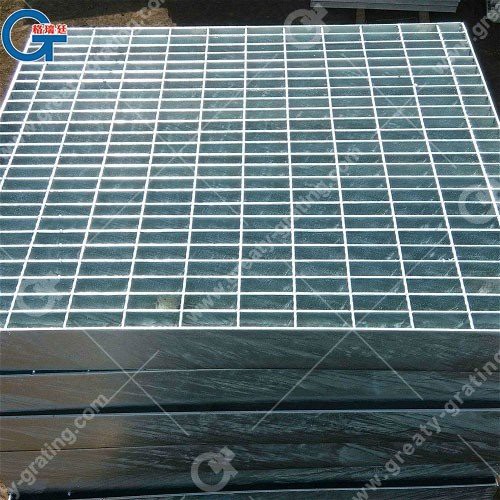

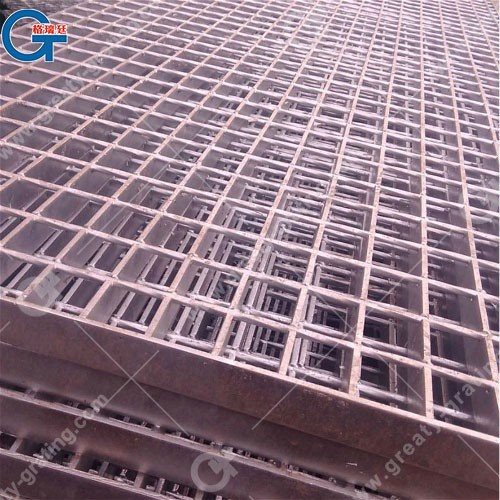

Hot dip galvanized steel grating is a raw plate made of load flat steel and crossbars arranged at a certain interval of warp and weft, and welded on a high-voltage resistance welding machine to form a raw plate. After cutting, notching, perforating, hemming and other processes, it is deep processed into the finished product required by customers.

Product Description

Hot dip galvanized steel grating is a raw plate made of load flat steel and crossbars arranged at a certain interval of warp and weft, and welded on a high-voltage resistance welding machine to form a raw plate. After cutting, notching, perforating, hemming and other processes, it is deep processed into the finished product required by customers.

Features: High strength, light structure: The firm grid pressure welding structure makes it have the characteristics of high load-bearing, light structure and easy hoisting; beautiful appearance and durable.

Usage: Widely used in platforms, walkways, trestle bridges, trench covers, manhole covers, ladders, fences, guardrails, etc. in petrochemical, power plants, water plants, sewage treatment plants, municipal engineering, environmental sanitation engineering and other fields.

Classification

* According to the manufacturing process, it is divided into pressure-welded hot-dip galvanized steel grating and pressure-locked hot-dip galvanized bar grating;

* According to the surface shape, it can be divided into serrated hot-dip galvanized steel grating, plain hot-dip galvanized steel grating, I-type hot-dip galvanizing bar grating and composite hot-dip galvanizing bar grating.

Hot Dip Galvanized Steel Grating Series

1. Flat steel center spacing: series 1 is 30mm; series 2 is 40mm; series 3 is 60mm.

2. Cross bar center distance: series 1 is 100mm, series 2 is 50mm. Other specifications can be customized.

3. Flat steel: The material is Q235A or stainless steel, with ordinary plane type, non-slip tooth type and cross-section I type. Common specifications are 20*5, 25*5, 25*3, 32*5, 32*5, 40*5, 40*3, 50*5, 65*5, 75*6, 100*8, 100*10, etc.

4. Crossbar: round steel, twisted square steel, square steel or hexagonal steel made of Q235A or 304 stainless steel. Twisted square steel is made by drawing and twisting the coil through a square die, and its common specifications are 5*5, 6*6, 8*8mm, etc.

For Example

1. Heavy-duty hot-dip galvanized steel grating

The hot-dip galvanized steel grating formed by welding flat steel with a width of 65mm—200mm and a thickness of 5mm—20mm is a rear heavy-duty hot-dip galvanized steel grating.

It is suitable for large freight yards and wharfs. Coal mine roads and bridges, etc., can carry large trucks through.

2. Hot-dip galvanized steel grating (flat steel spacing 40mm)

The hot-dip galvanized steel grating with flat steel spacing of 40mm is the most economical and lightest variety. It is the most ideal choice when the span is small.

3. Hot-dip galvanized steel grating (flat steel spacing 60mm)

Flat-steel spacing is 60mm, cross bar is 50mm, hot-dip galvanized steel grating is suitable for mining and mining industry, which solves the problem of mineral splashing on the plate surface, and is often designated for Mining industry processing plant.

4. Hot-dip galvanized steel grating (flat steel spacing 30mm)

The hot-dip galvanized steel grating with flat steel spacing of 30mm is the most widely used variety in the industrial field. In the series of commonly used hot-dip galvanized steel gratings, it has an impact on the surface Has the strongest resistance.

5. Hot-dip galvanized steel grating (I-type flat steel)

Hot-dip galvanized steel grating welded by I-type flat steel, which has the characteristics of light weight and heavy load. Suitable for various occasions, especially walkways, visiting platforms, etc.

Why choose us?

• We offer fast delivery times and flexible payment terms to our customers.
• Our strong company strength and strict quality control system guarantee the product quality and price advantages.
• Our Steel Grating products are engineered to withstand extreme conditions and environments.
• Our company's mission is to wholeheartedly produce the best, distinctive, market-oriented and competitive Hot Dip Galvanized Steel Grating.
• We provide comprehensive after-sales services to ensure that our customers are satisfied with our products.
• By strengthening resource management, we actively practice a green and sustainable development path.
• We use advanced technologies and equipment to manufacture our Steel Grating products.
• We regard talents as the first resource of the enterprise, while integrity is the first brand of the enterprise.
• We have a flexible production process that can accommodate various requirements and specifications.
• The corporation keeps to the operation concept 'scientific management, superior quality and performance primacy, consumer supreme for Hot Dip Galvanized Steel Grating.

Hot Tags: hot dip galvanized steel grating, China hot dip galvanized steel grating manufacturers, suppliers, factory, heavy duty metal grating, grating ss, safe bar grating, metal grating galvanised, steel walkway flooring, galvanised steel walkway grating
